We are professional Hastelloy alloy factory and supplier in INDIA .We can produce hastelloy alloy according to your requirements



Titanium bars and billets can be round, rectangular and hexangular in different sizes. They are all made from quality titanium ingots. Bar products can meet various standards, including ASTM B348, ASME SB348, ASTM F67, ASTM F136 and AMS 4928. And the grades can be Commercial Pure, Grade 5, Grade 6, Grade 7, Grade 12 and Grade 23.


Usually we have some most common bars in stock, such as bars of Grade1, Grade 2 and Grade 5. And we can offer prompt delivery worldwide, if the bars you need are in stock. Regarding the detailed specification, please check the following table.





CHEMICAL PHYSICAL AND MECHANICAL PROPERTIES
CHEMICAL COMPOSITION
ASTM GRADE
(Max. Values) 1 2 5 7 9 12 23
N. Nitrogen 0.03 0.03 0.05 0.03 0.02 0.03 0.03
C. Carbon 0.10 0.10 0.10 0.10 0.05 0.08 0.08
H. Hydrogen 0.02 0.02 0.01 0.02 0.01 0.02 0.01
Fe. Iron 0.20 0.30 0.40 0.30 0.25 0.30 0.25
O. Oxygen 0.18 0.25 0.20 0.20 0.12 0.25 0.13
Pd. Palladium       0.12-0.25
Al. Aluminum     5.5 - 6.75   2.5 -3.5   5.5 - 6.5
Mo. Molybdenum           0.2 - 0.4
V. Vanadium     3.5 - 4.5   2.0 - 3.0   3.5 - 4.5
Ni. Nickel           0.6 - 0.9
Ti. Titanium Bal. Bal. Bal. Bal. Bal. Bal. Bal.
Tensile strength. min (Mpa) 240.00 345.00 895.00 345.00 620.00 483.00 828.00
Yield strength. 0.2% Offset. min (Mpa) 170.00 275.00 825.00 275.00 483.00 345.00 759.00
Elongation (in 4D. min. %) 24.00 20.00 10.00 20.00 15.00 18.00 10.00
Reduction of Area. min. % 30.00 30.00 25.00 30.00 25.00 25.00 15.00
Hardness * Interpolated Rb70 Rb80 Rc36 Rb80 Rc28 Rc17

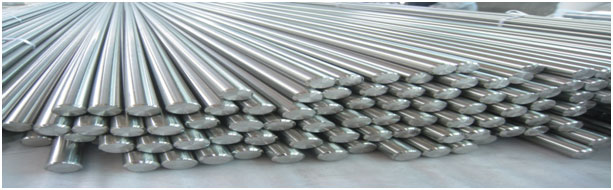

Titanium Round

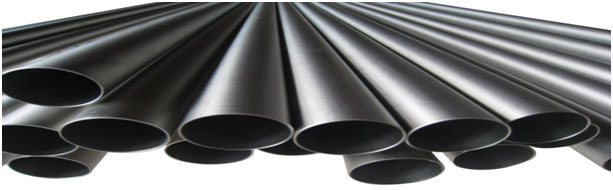

Titanium Tube

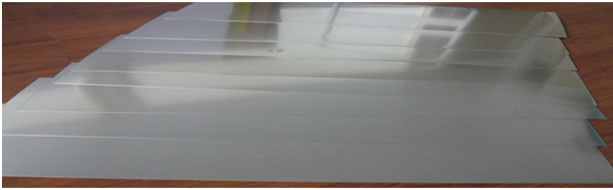

Titanium Sheets / Plates

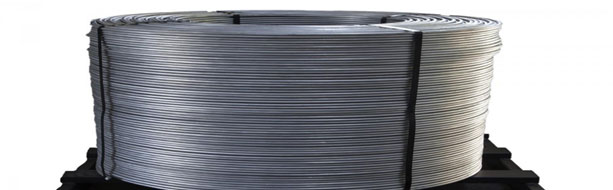

Titanium Wire / Welding Wire
